Navigation Bar

Navigation Bar

The Navigation bar has the primary destination placed sequentially and it offers a convenient way to switch between these destinations. Navigation Bar is generally located in the [Scaffold](#) widget when there are nested navigators or destinations.

Primary Destination​

A primary destination can be anything the user wants.

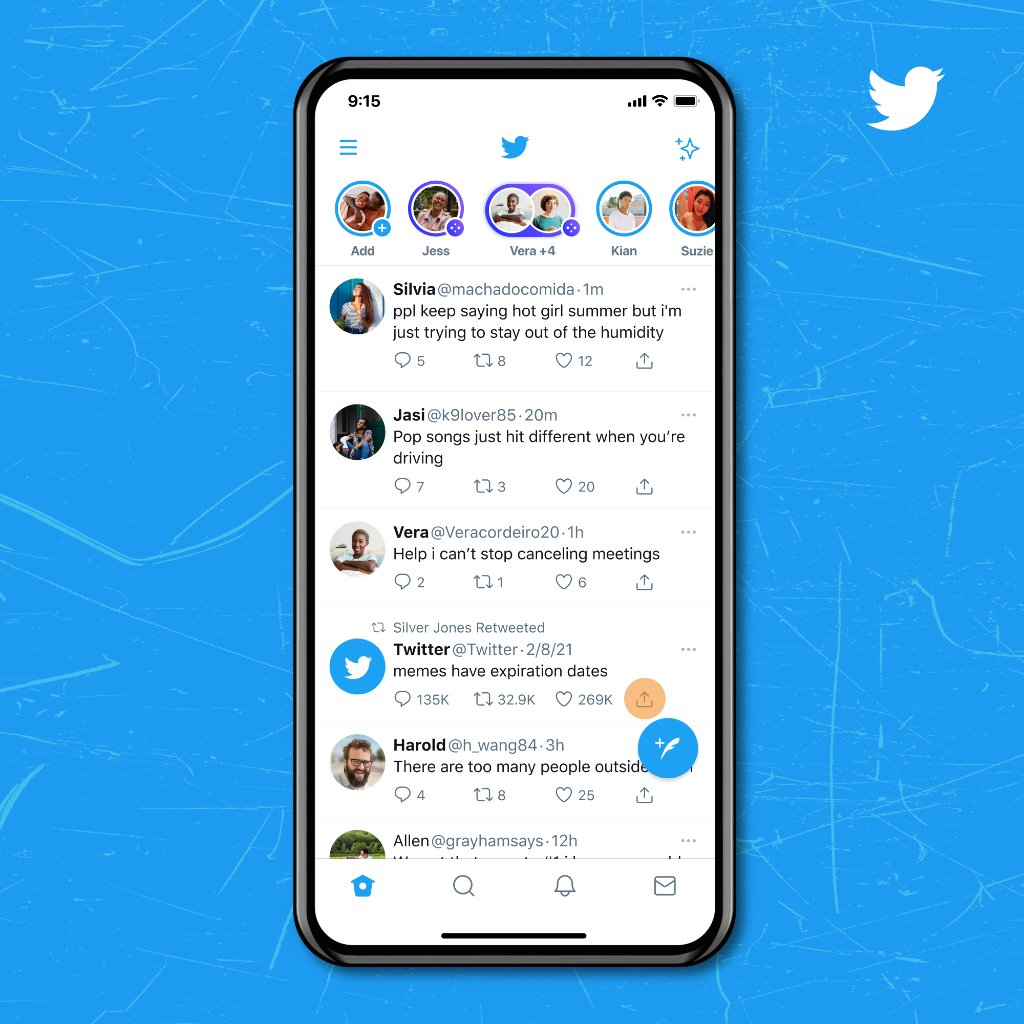

A) Look at the attached Twitter app, the primary destinations are

  1. Home
  2. Search
  3. Alerts
  4. Messages

Navigation Bar

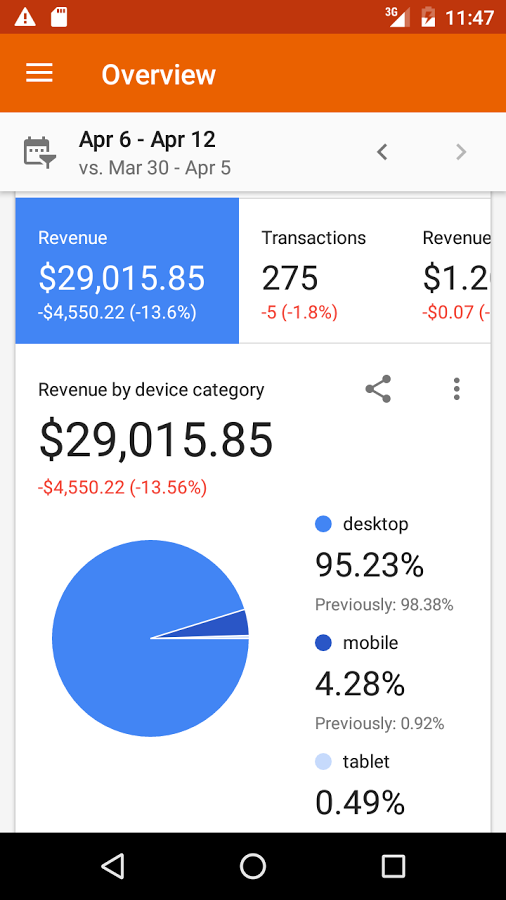

B) In the Google Analytics app, they don’t have a navigation bar. Instead, they put their primary destinations in a drawer (the burger icon in the top left).  So, it shows primary destinations when you open the drawer.

Navigation Bar

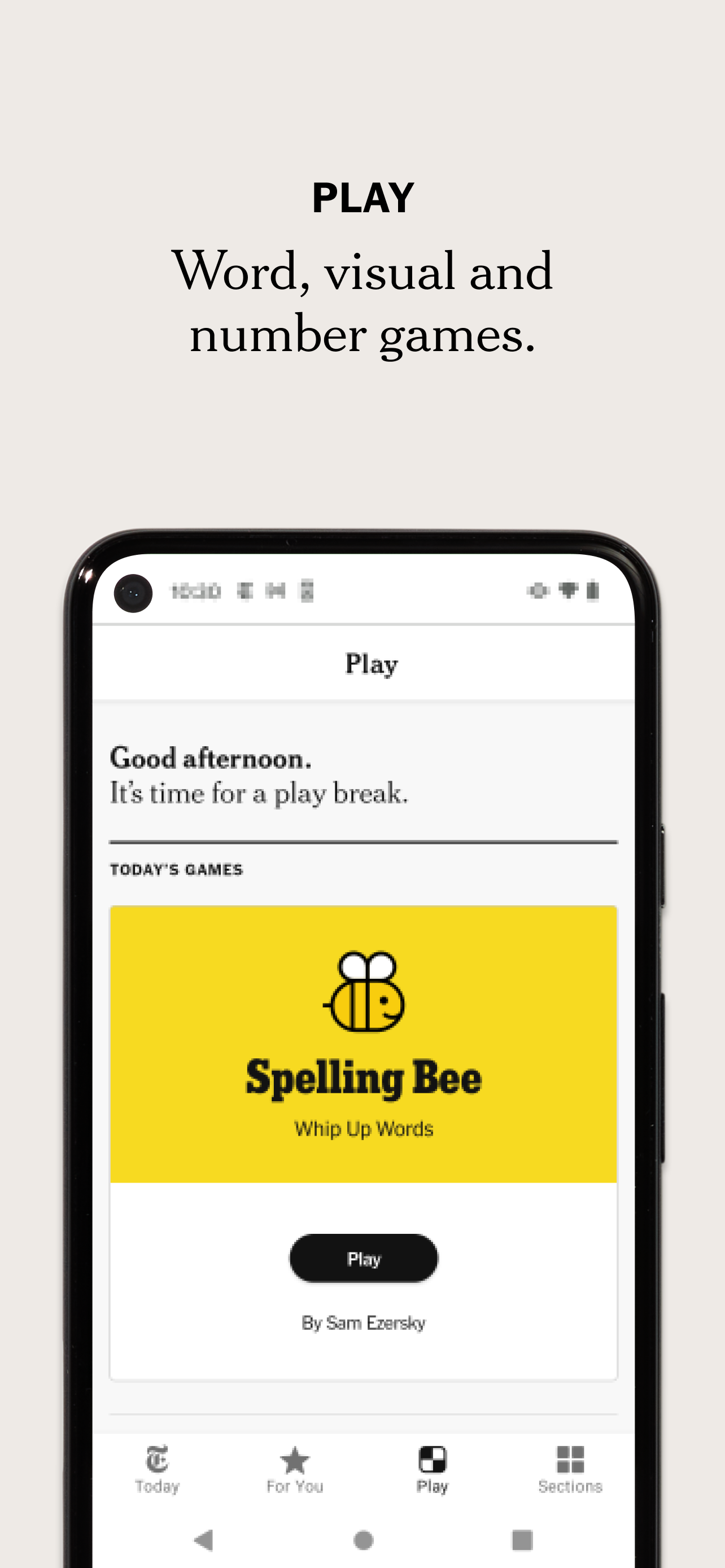

C) In the New York Times news app, they have

  1. Today
  2. For you
  3. Play
  4. Sections

Navigation Bar

Destinations are the main areas in the app where the app’s owner wants the user to be able to get to quickly and easily.

Check more about the Navigation here.

Use Cases​

Navigation Bar is the easiest way to divide a screen into primary destinations and provide easy navigation by indexing the destinations.

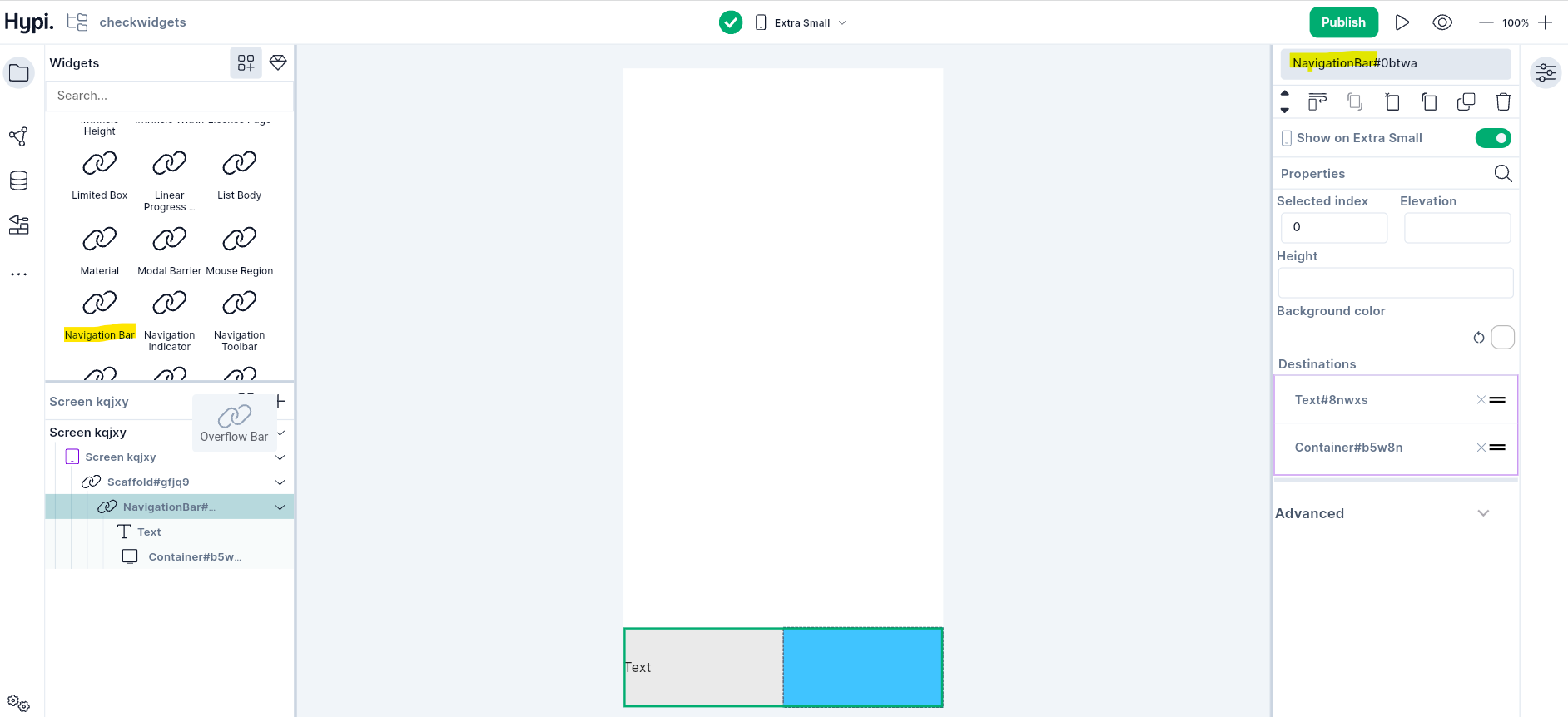

Properties​

  • Selected Index determines the currently selected destination. The first destination usually has an index of 0. Then it goes on incrementing with 1 with the next destinations.
  • Elevation value in pixels provides a raised appearance to the navigation bar.
  • You can also set the Height and Color of the navigation bar.
  • To arrange destinations on the Navigation Bar, drag the widgets from the Widgets panel to the Destination widgets on the Properties panel.
